Automatic PET Bottled 5 Gallon Filing Capping Machine

Name: Automatic PET Bottled 5 Gallon Filing Capping Machine
Brand: SUNSWELL
Price: 1 USD

Automatic PET Bottled 5 Gallon Filing Capping Machine Manufactures

Brand Name : SUNSWELL

Model Number : XGF

Certification : CE, ISO

Place of Origin : Jiangsu

MOQ : 1

Price : Negotiable

Payment Terms : T/T, LC,WESTERN UNION

Supply Ability : 100 sets per year

Delivery Time : 50 days

Packaging Details : Seaworthy wooden cases plus wrapping film

Product Name : Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine

Bottle Type : PET Plastic Bottle

Capacity : 150BPH-2000BPH

Filling Volume : 18.9L, 19L, 19.9L, 20L

Filling Principle : Gravity Filling

Filling Accuracy : ±5%

Material : SUS 304/316L

Contact Now

Water Filling Machine Automatic PET Bottled 5 Gallon Filing Capping Machine

3-5 Gallons Barreled Water Production Line

(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel

(2) The machine consists of washing, filling and sealing in one

(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of

washing sterilization.The disinfectant is recyclable

(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation

device to ensure the sanitation of cap

(5) Washing, disinfection, filling, gland, counting and discharging is automatic

(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure,

small occupation of land and high automation

CE/ISO new design 5 gallon bottled water machines/filling machine

Main technical data
Model	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Number of filling heads	1	2	3	4	8	12	16
Filling capacity	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size (mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Production capacity (b/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure (Mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption (m3/min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(kw)	1.75	3.22	4.8	8.5	8.5	8.5	8.5
Rated voltage (V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Overall dimension (mm)	3790×650 ×1550	3550×800 ×1800 2800×1100 ×1800	3550×1200 ×1800 3800×1100 ×1800	3650×1500 ×1800 3800×1100 ×1800	2200×1860 ×2700 not include cleaning	2560×2350 ×2750 not include cleaning	3100×2800 ×2750 not include cleaning

Automatic PET Bottled 5 Gallon Filing Capping Machine

Product Tags:

CE PET Bottled Water Filling Machine

SUS304 5 Gallon Filing Capping Machine

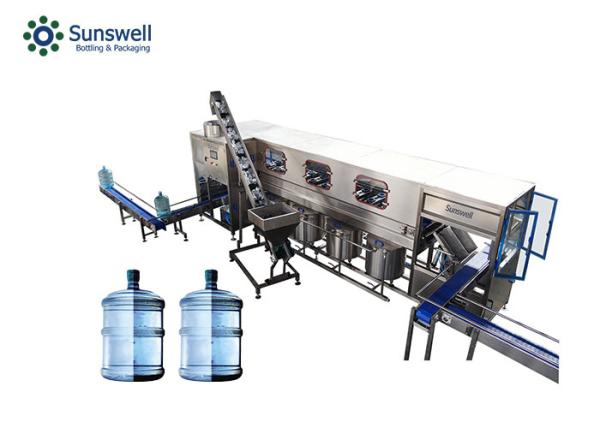

Automatic PET Bottled 5 Gallon Filing Capping Machine Images
