PLC Control 5 Gallon Water Filling Machine SUS304 Bucket Bottle Filling Line

  • 1
  • 2
  • 3

Brand Name : SUNSWELL

Model Number : XGF

Certification : CE, ISO

Place of Origin : Jiangsu

MOQ : 1

Price : Negotiable

Payment Terms : T/T, LC,WESTERN UNION

Supply Ability : 100 sets per year

Delivery Time : 50 days

Packaging Details : Seaworthy wooden cases plus wrapping film

Product Name : Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine

Bottle Type : PET Plastic Bottle

Capacity : 150BPH-2000BPH

Filling Volume : 18.9L, 19L, 19.9L, 20L

Filling Principle : Gravity Filling

Material : SUS 304/316L

Contact Now

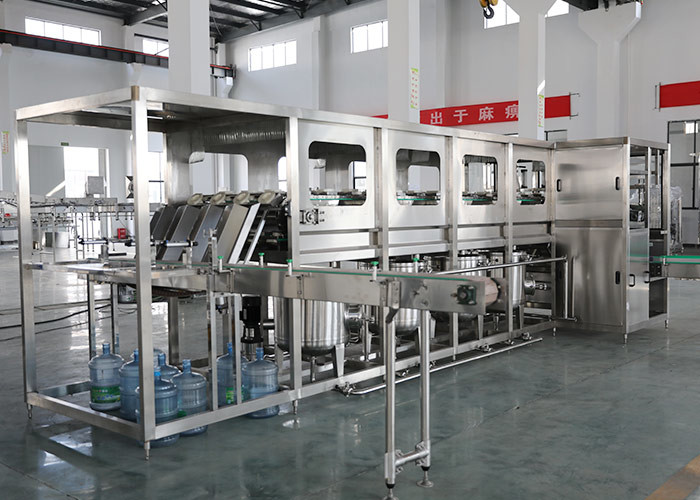

High Efficiency Automatic 5 Gallon Bucket Bottle Filling Line/System/Machine

This machine is the use for 5 gallon 20L bottle water washing-filling-capping. It's automatic 5 gallon bottle washing, filling and capping machine. The washing machine with high pressure water pump, it can wash the bottle clean.

1) It is ideal equipment for producing mineral water, super-pure water,space water and distilled water.

2) Advanced PLC control system

3) The key parts are imported and their quality is reliable.

4) Barreled water production line machine is made of stainless steel.

5) Its structure is reasonable and its operation is convenient.

6) Easy cleaning and corrosion.

Specifications:

Main technical data
Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
Number of filling heads 1 2 3 4 8 12 16
Filling capacity 18.9 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size (mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Production capacity (b/n) 100-120 200-240 300-400 600 900 1200 2000
Gas pressure (Mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
Gas consumption (m3/min) 0.37 0.6 0.6 1.2 2.2 3 4.5
Motor power(kw) 1.75 3.22 4.8 8.5 8.5 8.5 8.5
Rated voltage (V) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Overall dimension (mm) 3790×650
×1550		 3550×800
×1800
2800×1100
×1800		 3550×1200
×1800
3800×1100
×1800		 3650×1500
×1800
3800×1100
×1800		 2200×1860
×2700
not include cleaning		 2560×2350
×2750
not include cleaning		 3100×2800
×2750
not include cleaning

PLC Control 5 Gallon Water Filling Machine SUS304 Bucket Bottle Filling Line

PLC Control 5 Gallon Water Filling Machine SUS304 Bucket Bottle Filling Line
PLC Control 5 Gallon Water Filling Machine SUS304 Bucket Bottle Filling Line
PLC Control 5 Gallon Water Filling Machine SUS304 Bucket Bottle Filling Line
