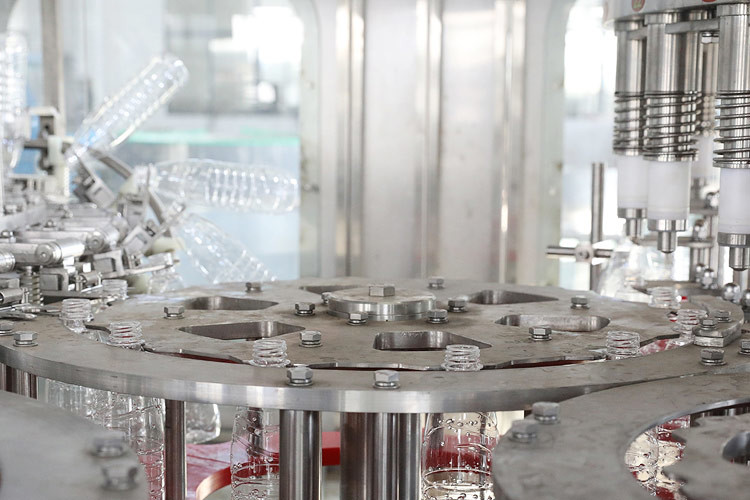

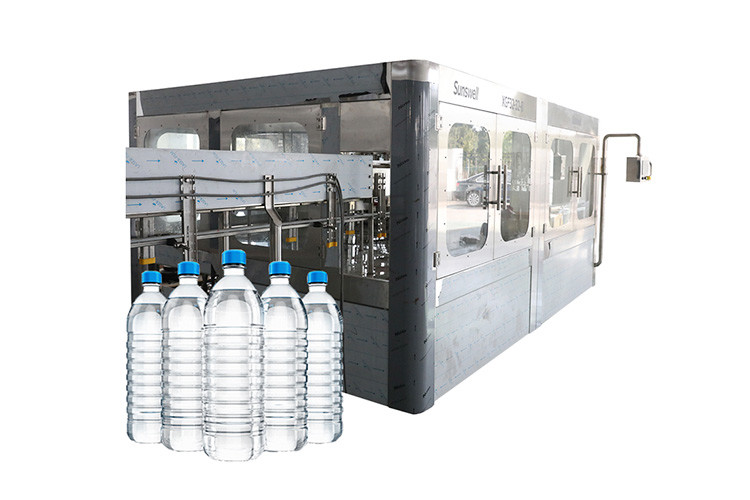

This small mineral water bottling plant filling machine combines washing, filling and rotary capping functions in one unit,is a fully automatic and high efficiency liquid packing equipment.It is suitable for packing beverage without gas. Its performance is as following:all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of food sanitation.
Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears. 5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates. 6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Specifications:
| Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-6 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 |
| washing, filling and capping heads | 14-12-5 | 16-16-5 | 24-24-6 | 32-32-8 | 40-40-10 | 50-50-15 |
| Production capacity(600ml)
(B/H)
| 5000BPH | 7000BPH | 10000BPH | 15000BPH | 18000BPH | 21000BPH |
| Motor power(kw) | 2.2kw | 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 |
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.
