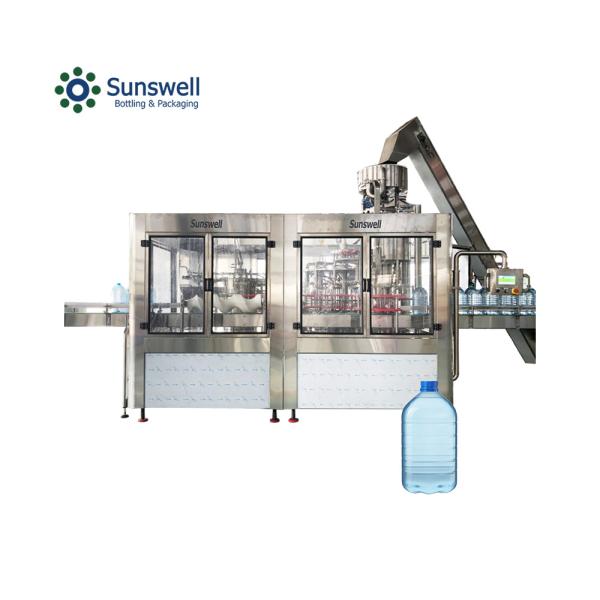

3l-5l water filling line automatic bottle drinking water filling machine
The water line is composed of separate rinsing, filling and capping units.

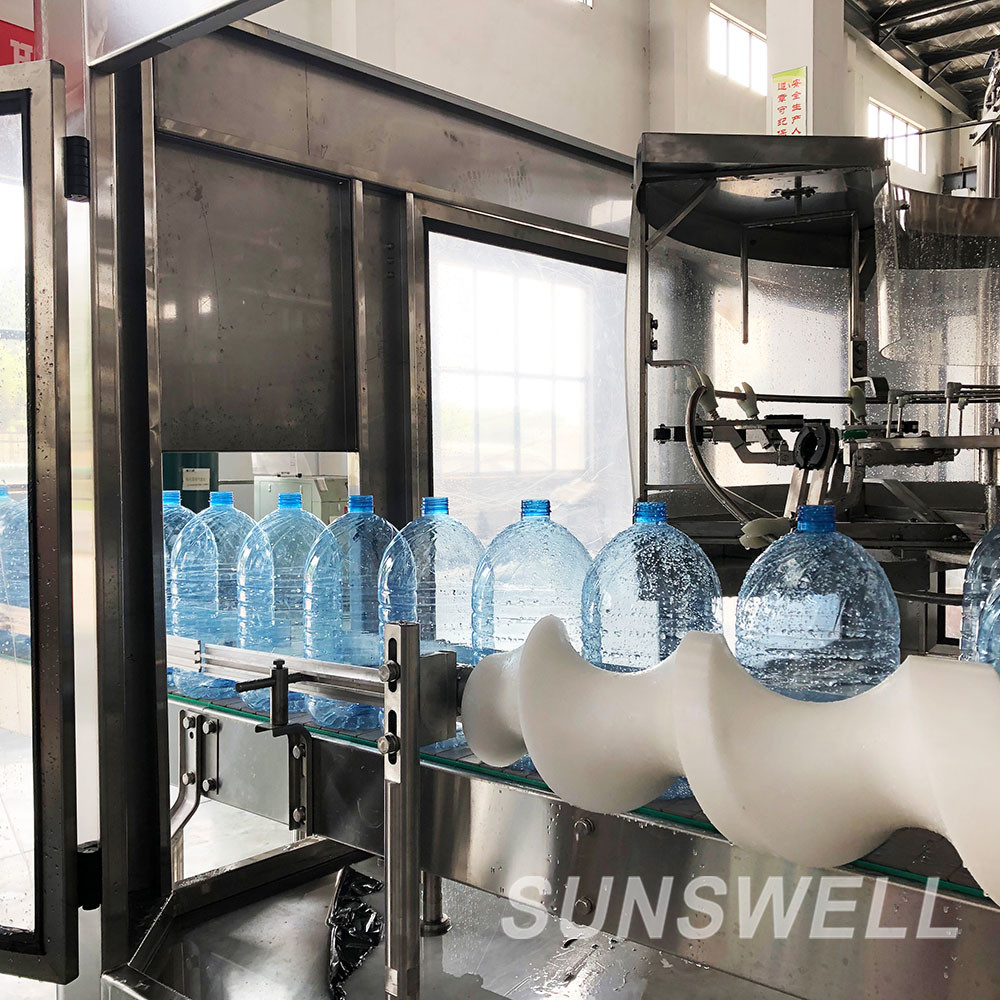

It is adopted that direct connection between top-chain conveyor and infeed screw.There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
Main Features

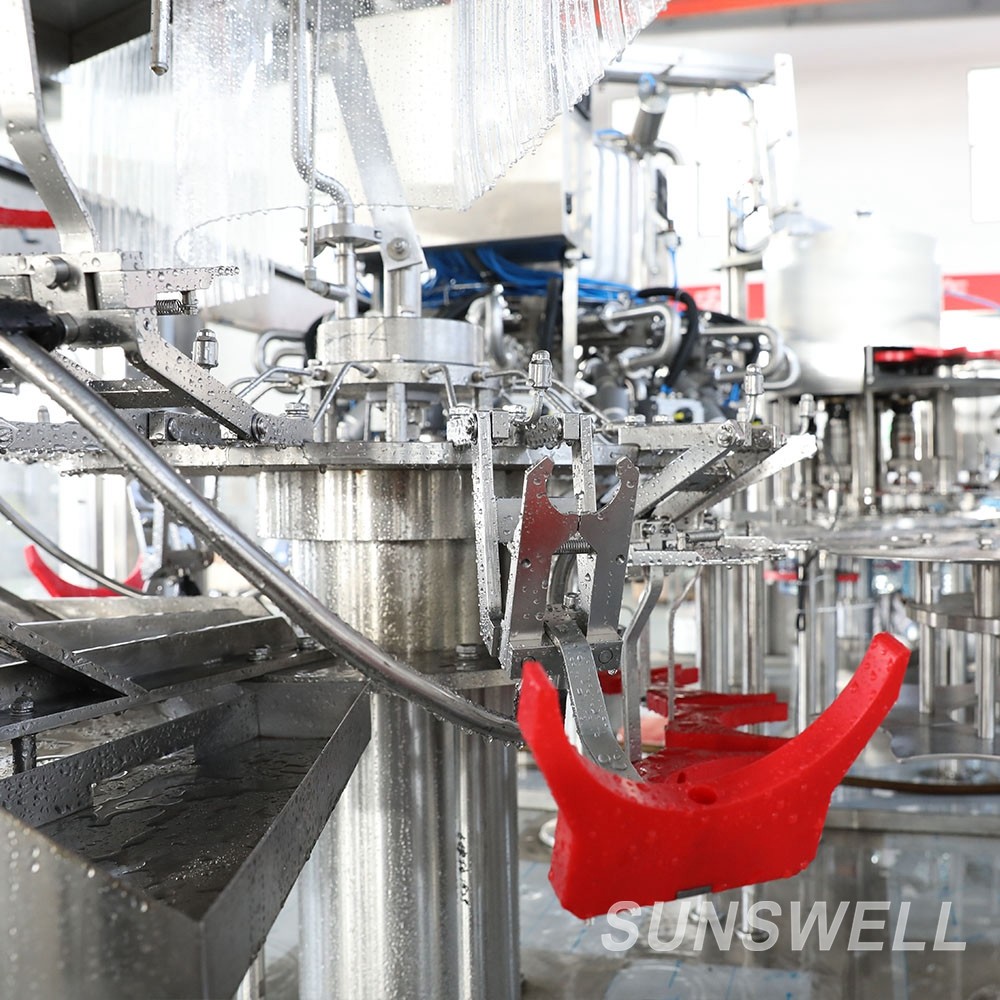

Rinsing part
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts our company original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with the angle 15° ensures to wash all side of the bottle, and can save the water.

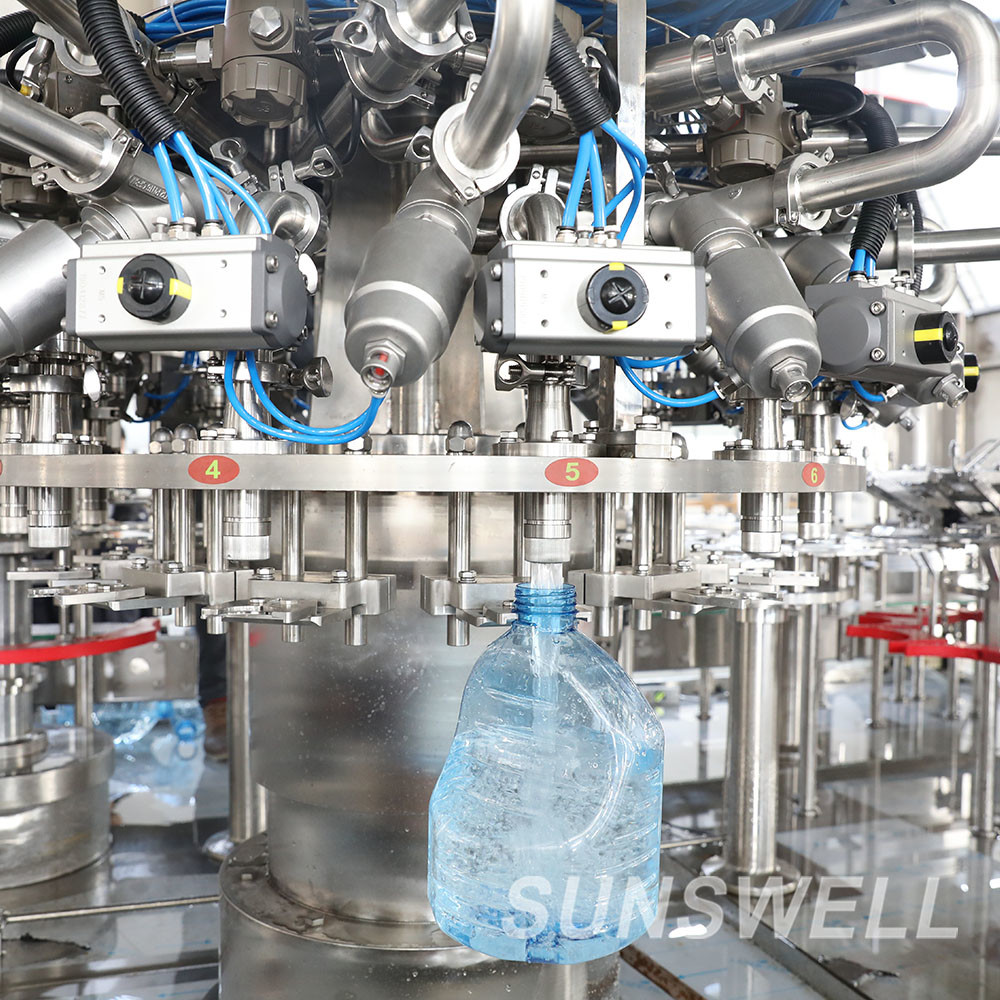

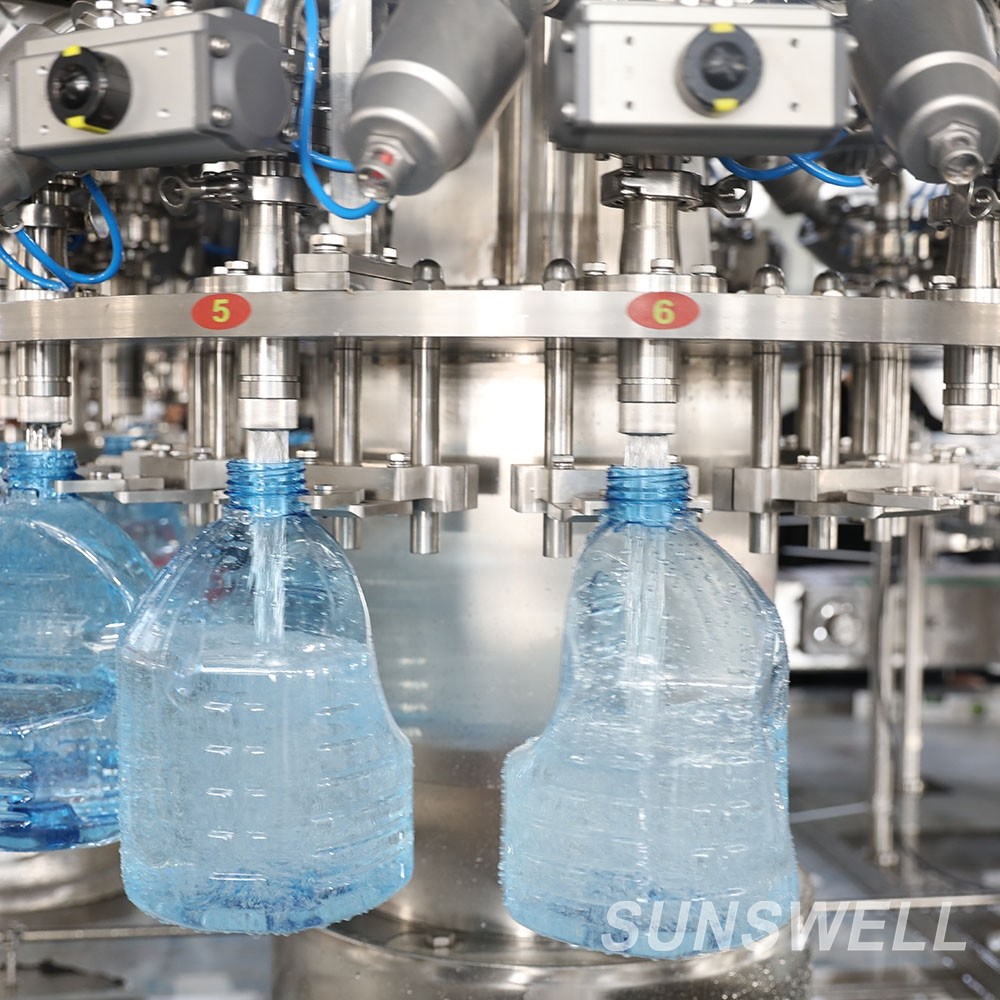

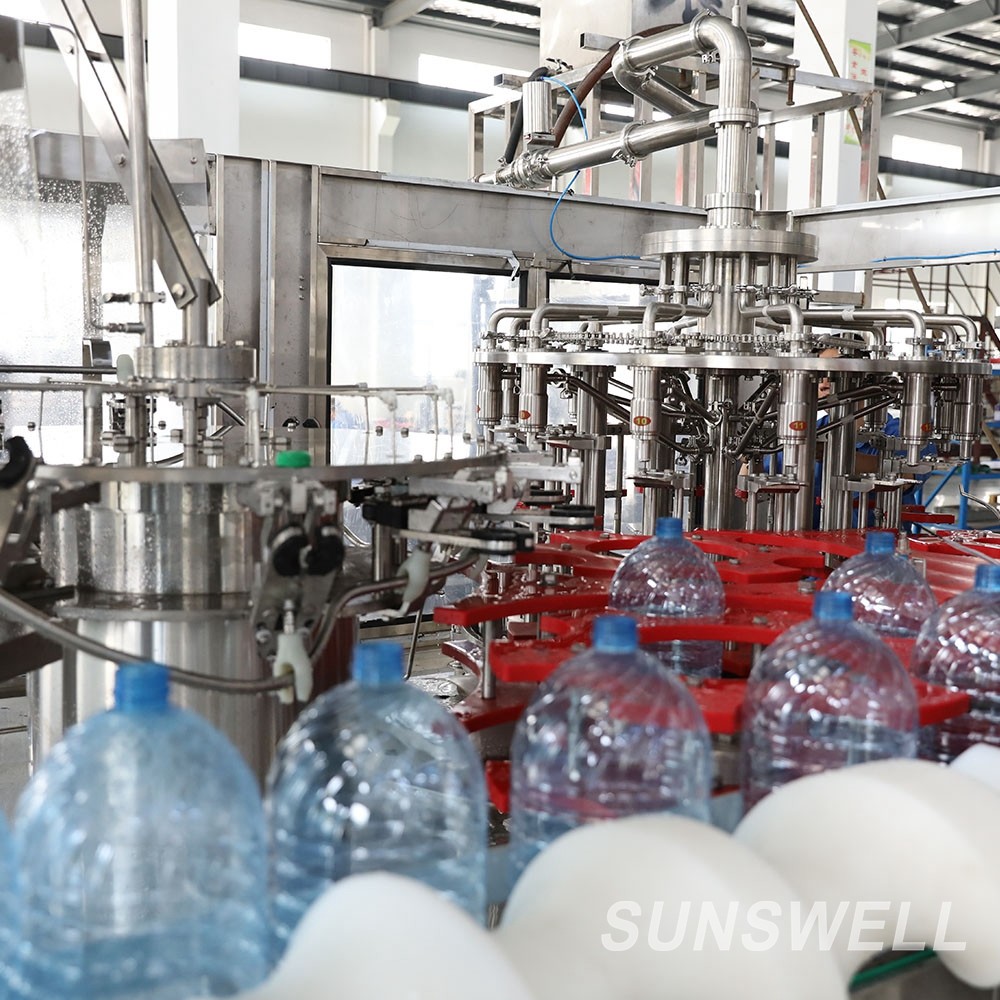

Filling machine
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.

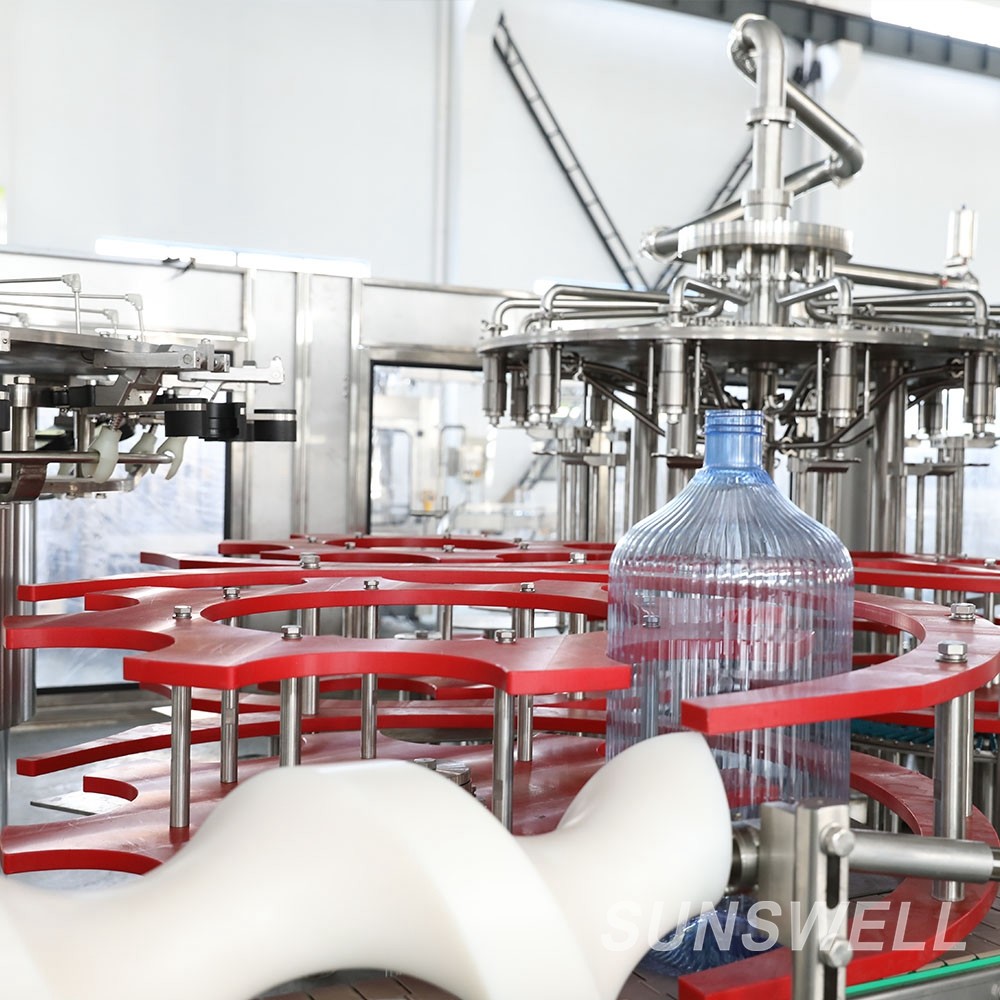

Bottle is conveying by the wheel in the filling part.

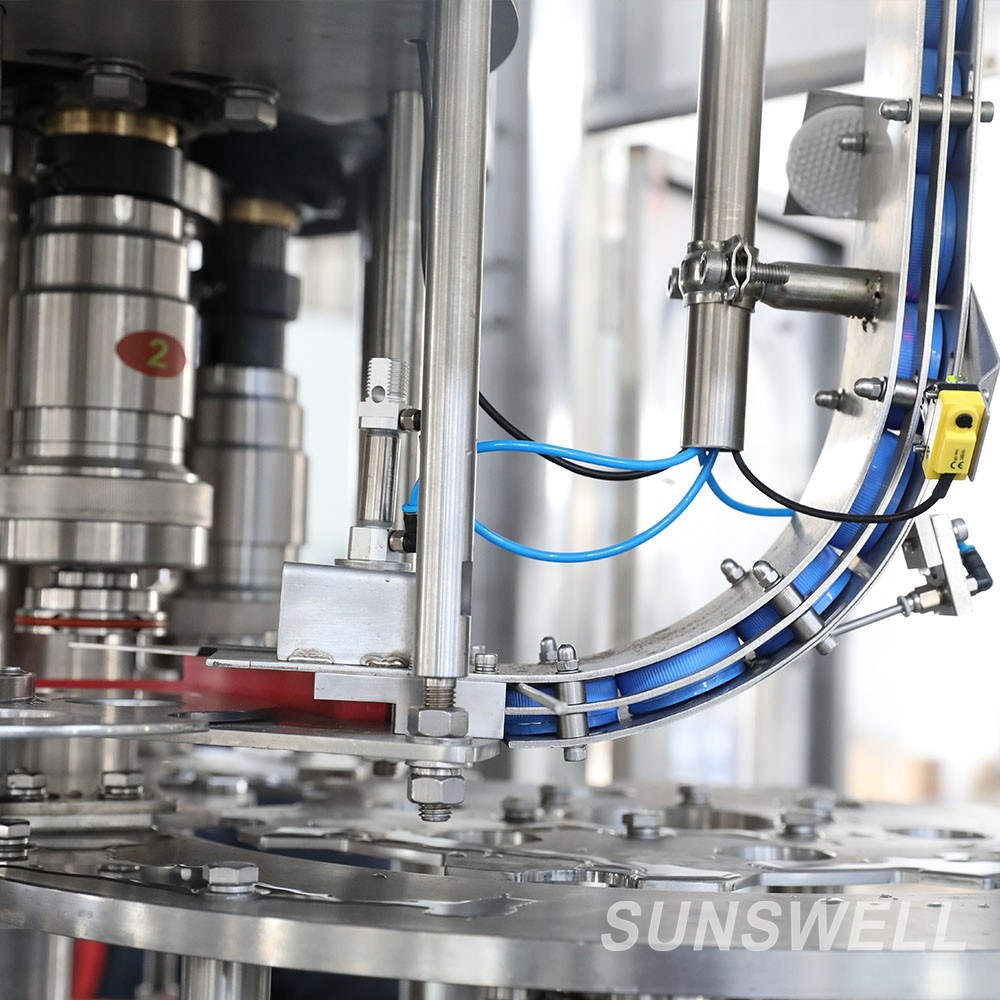

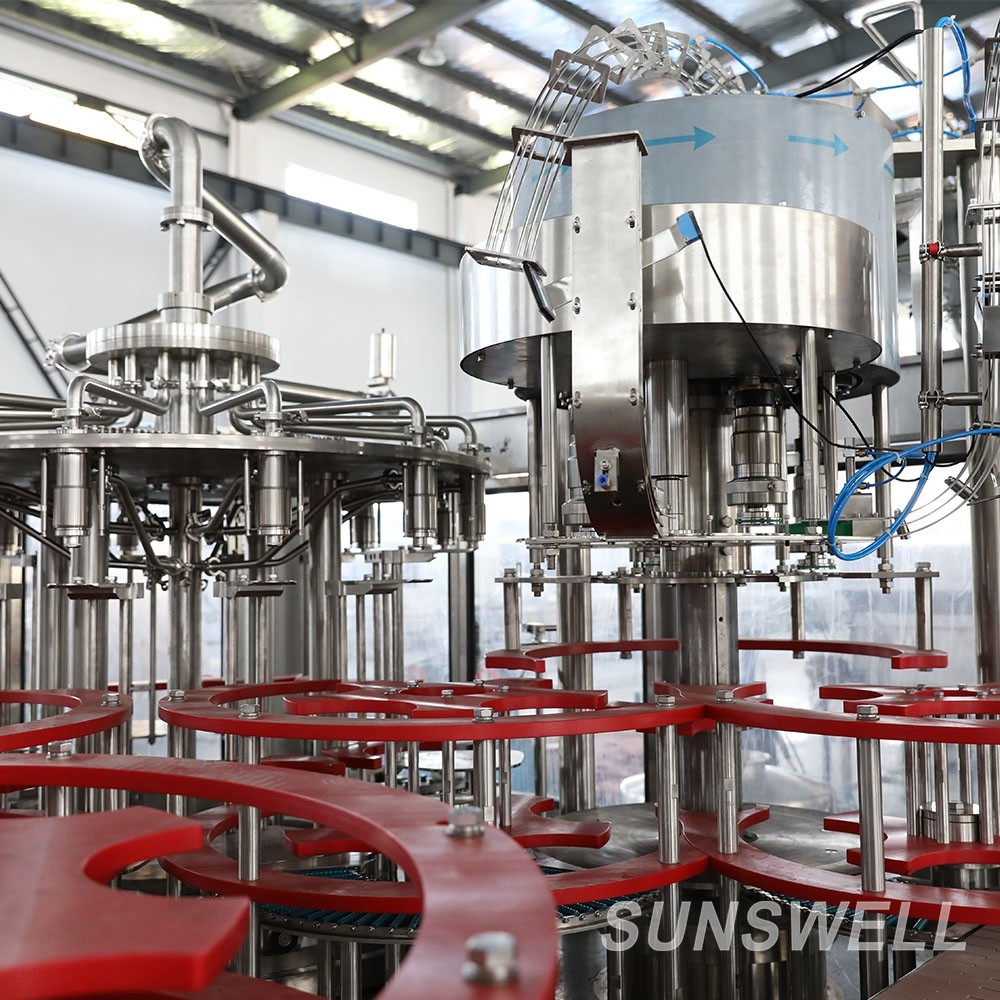

Screw capping machine
Screw capping machine is most precision part in the machine, which has a big influence to the goods stability and defective rate. Our screw capping has following feature.
1) Our company import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part, installed photoelectricity control, when it has no cap or the cap is bad, the machine will stop automatically.
Main Configuration
Material of filling valve: Stainless steel 304
Material of rotary tray and machine platform of rinser and filler: Stainless steel 304
Main motor: Supror
Frequency inverter: Mitsubishi
Touch screen: Pro-face
PLC: Mitsubishi
Pneumatic components: Airtac
Photocell switch: Leuze
Proximity switch: Leuze
Product List
| Model | XGF12-12-4 | XGF16-16-4 | XGF16-16-4 | XGFH25-25-5L | | Capacity | 1,500BPH (5L) | 2,000BPH (5L) | 1,500BPH (10L) | 3,000BPH (5L) | | Main machine dimensions | 3380×2580×2700mm (L×W×H) | 3130×2400×2750mm (L×W×H) | 3130×2400×2750mm (L×W×H) | 4154×3054×2750mm (L×W×H) | | Weight | 4800Kg | 5000Kg | 5000Kg | 7800Kg | |

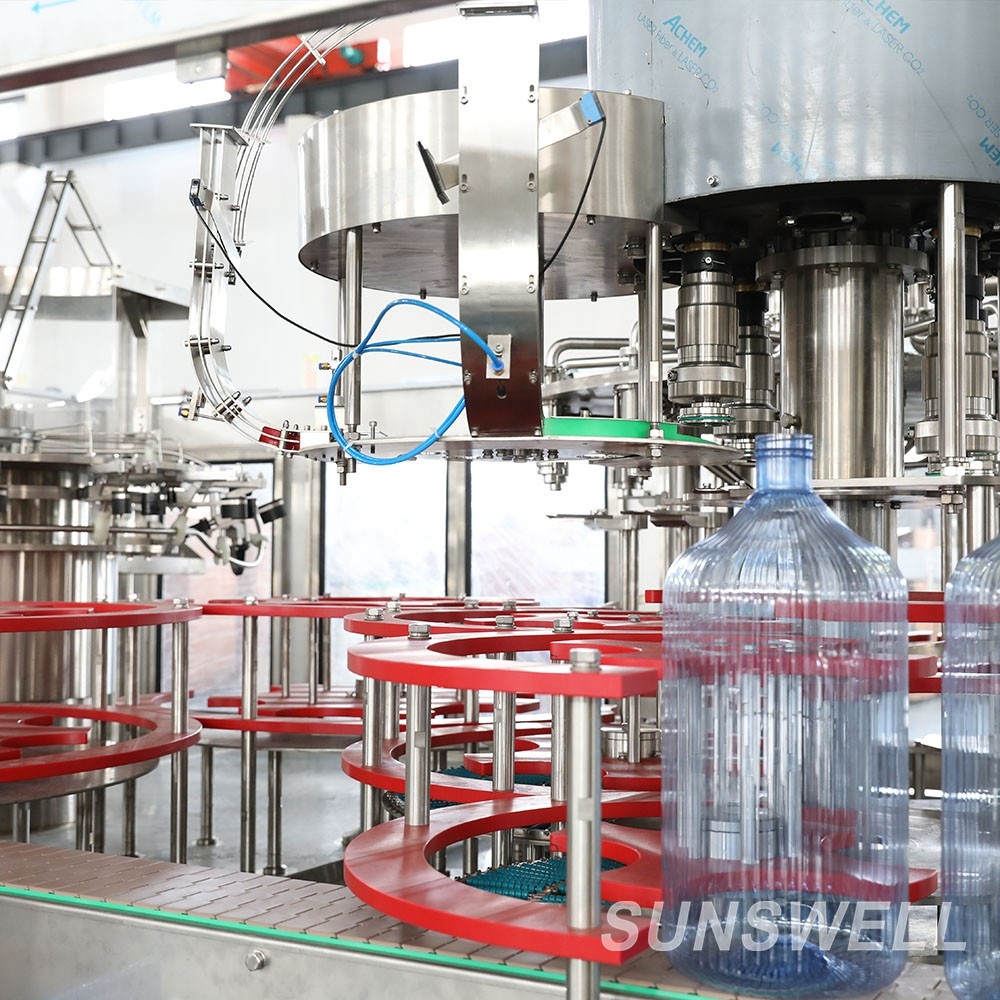

Detail Picture
