Pure / Mineral Drinking Water Blowing Filling Capping Combiblock Solution

  • 1
  • 2

Brand Name : Sunswell

Model Number : BFC

Certification : CE

Place of Origin : Zhangjiagang, Jiangsu, China

MOQ : 1 set

Price : USD500,000~2,000,000/SET

Supply Ability : 10sets/season

Delivery Time : 90~120 working days

Packaging Details : PE film with carton box packaging

Product : pure/drinking water

Package : PET bottles

Filling temperature : ambient temperature

Filling technology : gravity filling, volumetric filling

Production Capacity : 12,000BPH - 40,000BPH

Guarantee : 2 years

cap : plastic cap

Service : engineers able to come to client factory for machine installation and commissioning

brand : sunswell

Contact Now

Pure / mineral drinking water Blowing Filling Capping Combiblock filling line solution

Capacity: 12,000 – 40,000BPH (500ml)

3-in-1 combiblock, composed of blowing, gravity filling and capping. It is innovated and designed in the requirement of still pure water and mineral water. The combiblock avoids friction of bottles during air conveying, beneficial for light weight bottles.

Technical Features.
1.Friendly HMI with easy switch for multi-languages.
2.Advanced reflection system by ceramic plate, heat-preservation system and heating system, preform can be heated evenly.
3.Unique high-pressure gas recovery system that saves more than 30% of compressed air.
4.Ionized de-duster can be equipped to improve the cleanliness of the packaging container.
5.The tailored made servo stretching system can be adapted to preforms with various stretching ratio, achieving the variable speeds and high accuracy positioning.
6.The filling valve is designed with the tidy and safe valve body, the material quality can be fully guaranteed.

Equipment Structure

NO. Model Capacity(based on 500ml) Remark
1 8-32-8 15,000bph
2 10-40-10 18,000bph
3 12-40-15 22,000bph
4 14-40-15 24,000bph
5 16-50-18 30,000bph

Pure / Mineral Drinking Water Blowing Filling Capping Combiblock Solution

Gravity Filling Machine

Pure / Mineral Drinking Water Blowing Filling Capping Combiblock Solution

Capping Machine

Pure / Mineral Drinking Water Blowing Filling Capping Combiblock Solution

Blowing-Filling-Capping Combiblock:

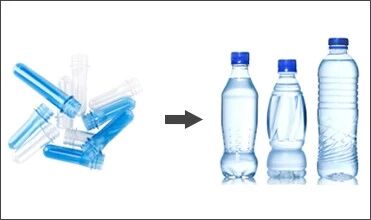

The innovative packing technology with a single unit machine to complete the whole process from preform to bottled liquid products.

Blower, filler and capper combined to one block, improves sanitary conditions, reduce cross contamination, increase running effieciency, and reduce energy consumption.

Pure / Mineral Drinking Water Blowing Filling Capping Combiblock Solution Pure / Mineral Drinking Water Blowing Filling Capping Combiblock Solution

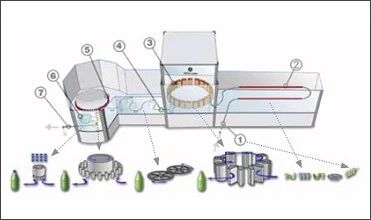

Flow Chart:

1.Preform input
2.Heating
3.Bottle blowing
4.Star wheel transmission
5.Filling
6. Capping
7.Product output

Any more questions, pls feel free to contact me !
